Methods for Memory Scanning
December 2nd, 2024: Tamir Vered
Introduction
Memory Scanning is a key method in both static and dynamic analysis of a system's state. It is widely used in a variety of forensic research cases, including malware analysis.
In this article, we describe methods for performing such memory scanning on a given system, in both static (memory dump) and dynamic (debugging/monitoring) contexts, through Physical Memory Scanning and Virtual Memory Scanning, and compare the pros and cons of each method in terms of Performance, False Alarms and Misdetections, as well as comparing the Limitations of the methods in question.
Motivation
Consider the following situation, illustrated in a Windows environment.

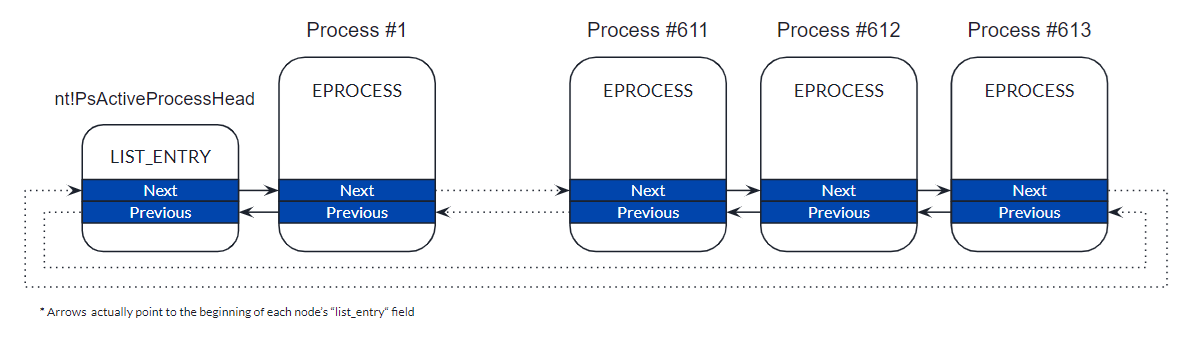

A symbol called nt!PsActiveProcessHead
points to the head of a doubly-linked list
of the processes in the system. Each process, is represented by the EPROCESS
struct, and holds
a LIST_ENTRY
struct member named ActiveProcessLinks
that makes it an
element of the list:

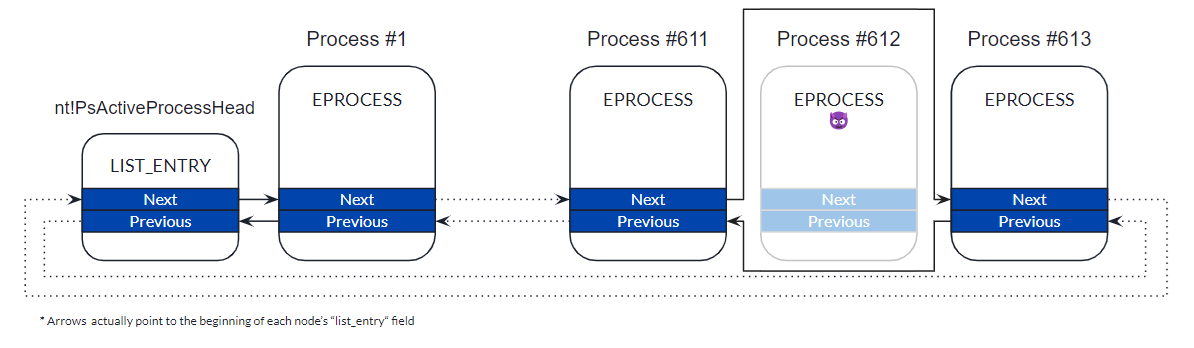

A malicious process, that manages to exploit a vulnerability and gets
write access
to kernel memory can detach itself from the nt!PsActiveProcessHead
list, rendering
it invisible
to the Task Manager, or to any other utility that monitors that list:

It is important to note that the fact that the malicious process is no
longer contained by
the aforementioned list, on its own - does not mean that the scheduler of the operating system
ignores that
process, which means that it can run in the background unnoticed. Since the malicious process
still resides
in the RAM, we can find it by means of memory scanning.
Virtual Memory
Before we dive into comparing methods for physical and virtual memory scanning, it is important to understand the concept of virtual memory, and how it is implemented in modern operating systems. Virtual memory is a memory management technique, that provides abstraction from the physical resources, by means of managing separate address "maps" for each virtual address space. Common virtual address spaces are Kernel Virtual Address Space and a separate address space for each process.

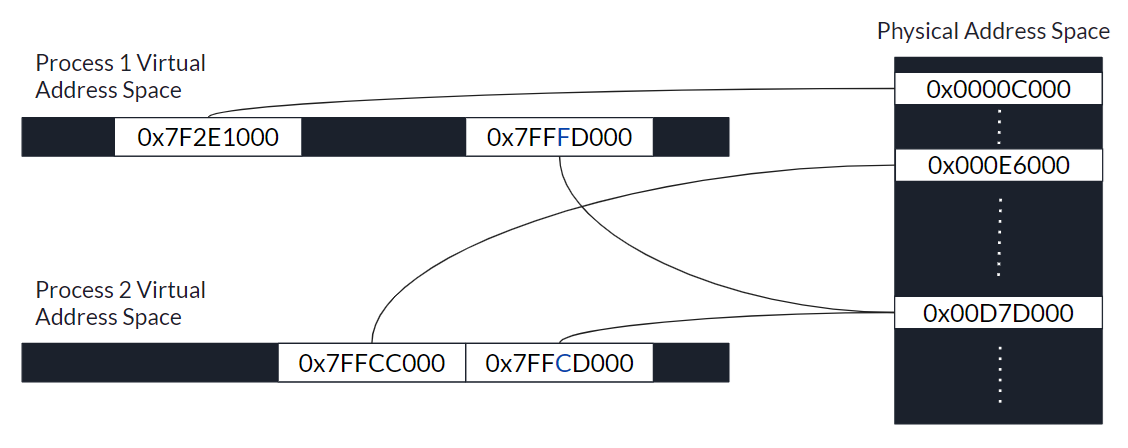

As can be seen in the figure below:
- Different virtual addresses (from the same, or from different virtual address spaces) can point to the same physical resource.
- Consecutive virtual addresses can point to non-consecutive physical resources.
This abstraction enables Process Encapsulation, Physical Resource Independency as well as Paging/Swapping (that is, temporarily offloading volatile memory to a persistent storage device).

Translation of virtual addresses to a physical one is a feature built into the CPU, that is
implemented by
"crawling" a structure tree that is called the Page Tables (note: the address resolution
process described
hereafter is correct for a standard 64-bit 4-level paging scheme that is found in x86-64
CPUs).
The Page Tables
Let us follow the normal case: The CR3 control register contains a Page Frame Number
(PFN),
that is a physical address from which the lower 12 bits are trimmed.
The PFN stored in CR3 points to a Page Table of the first hierarchy (out of the 4-level paging
scheme),
called PML4. It is unique between different processes and the kernel.
Next, bits 47-39 of the 64-bit virtual address specify which of the PML4 table's 512
entries should
contain the physical pointer to the table of the next hierarchy (That is called Page
Directory Pointer
table, or PDP table). The pointer is stored, once again, as a PFN.
Now, next 9 bits (bits 38-30) of the original virtual address specify the PDP entry that
will point to the
next hierarchy. The process continues pretty much the same for two more hierarchies, the Page
Directory (PD)
and the Page Table (PT). This leaves us with bits 11-0 of the virtual address, that
specifies the offset,
inside the final 4KiB Page that was resolved from the PT entry, that the virtual address
refers to.

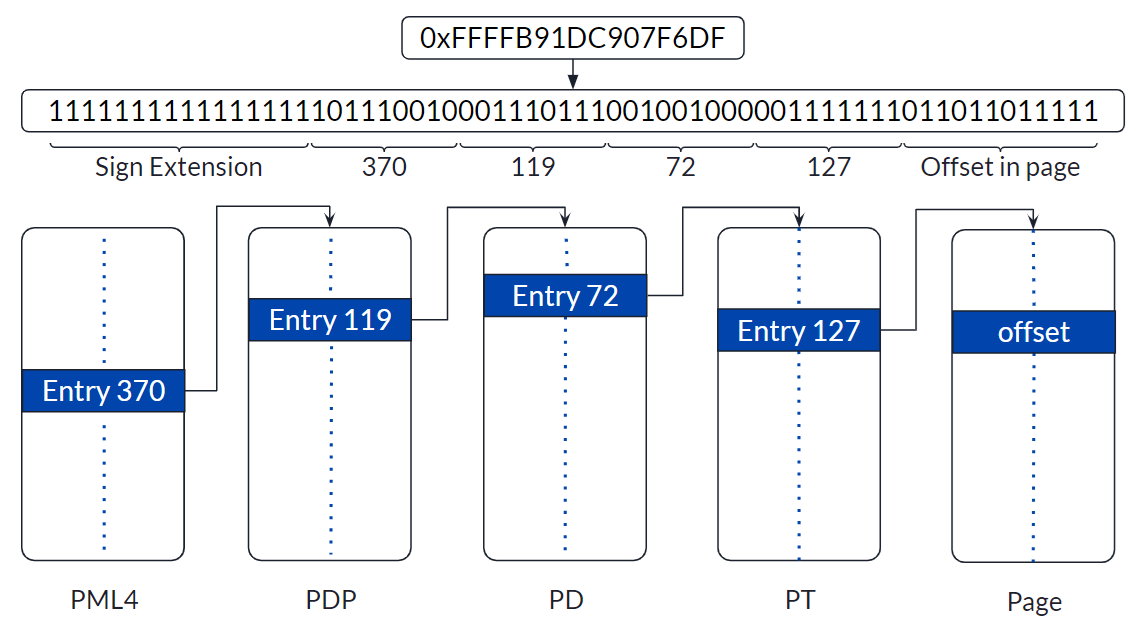

The entire process is depicted in the figure below for the virtual address
0xFFFFB91DC907F6DF
:

There are two common flows that can deviate from the normal case:
- Page Faults: Table-entries also contain flags. In any hierarchy, the entry being crawled can be marked as swapped-out (in which case, the operating system should handle the thrown Page Fault and retrieve the swapped page back from the storage device), or not present at all.
- Large Pages: An entry can also be flagged for being a Large Page. In this case, the entity pointed to by the entry will not be the next hierarchy page table, rather a large physical range, for which the relevant offset will be specified by the rest of the bits of the virtual address. For example, if a PD Entry is flagged as a Large Page, then the entry will point to a 2MiB physical page, and the relevant offset in that page will be specified by bits 20-0 of the virtual address.
Physical Memory Scanning
In the case of physical memory scanning, we iterate the entire physical memory (either
statically, on a given
memory-dump, or dynamically from driver code or through a debugger) and look for patterns that
fit for the objects
that we are looking for.
For example, in the hiding process scenario from before, we would like to scan for
EPROCESS
objects.
This structure is allocated with a header containing a Pool Tag - a marker that can be
used for debugging.
The pool tag with which the EPROCESS
objects are allocated are "Proc"
in newer versions of
Windows, and "Pro\xE3"
in older versions. The EPROCESS
structure also
contains an
ImageFileName
field, containing the executable name. This pattern is something we
can look for in
the physical memory in order to find EPROCESS
objects.

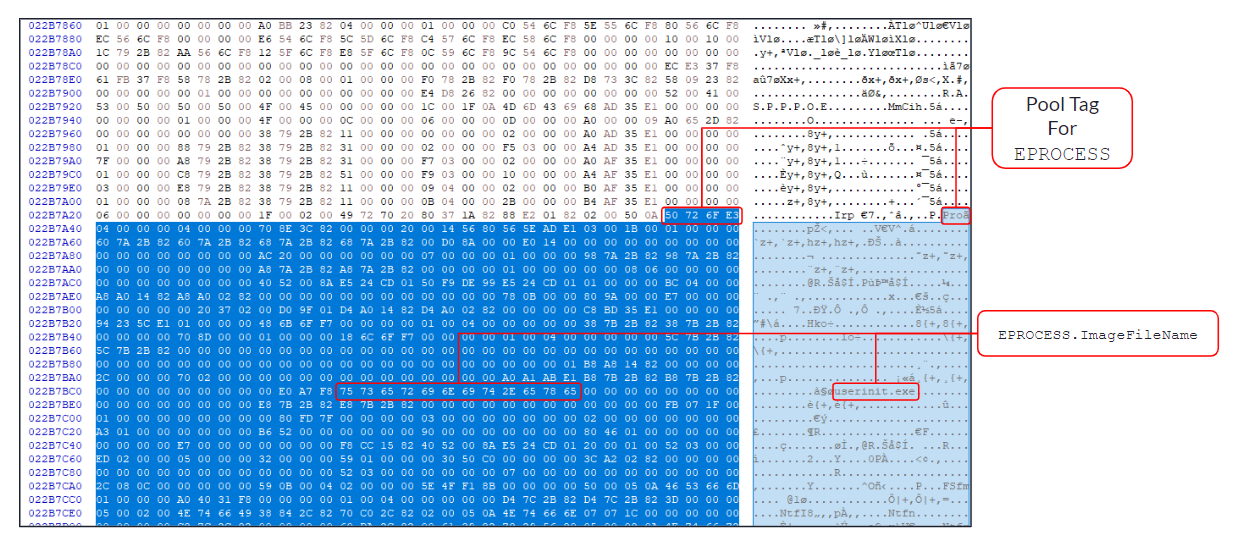

In the figure below we can see hex-view of a full physical memory dump, in which a pattern that
matches an
EPROCESS
can be found:

Doing such a scan statically is one thing, but accessing "live" physical memory from code is
more challenging,
mainly since pointers in code are virtual by nature (which is, as mentioned before,
implemented by the CPU).
So, how can we access physical memory? One way could be performing a read operation on the
physical memory
device through an API provided by the OS.
Another could be mapping a virtual address to a physical one, and accessing
the memory through the virtual address (again, via OS provided API). Both ways can be quite
slow when iterating
large memory ranges. Moreover, the second method could have a significant memory
footprint since it alters the
Page Tables intensively when mapping and unmapping memory ranges, and we would like to avoid
heavily affecting
the examined system's memory during a forensic analysis.

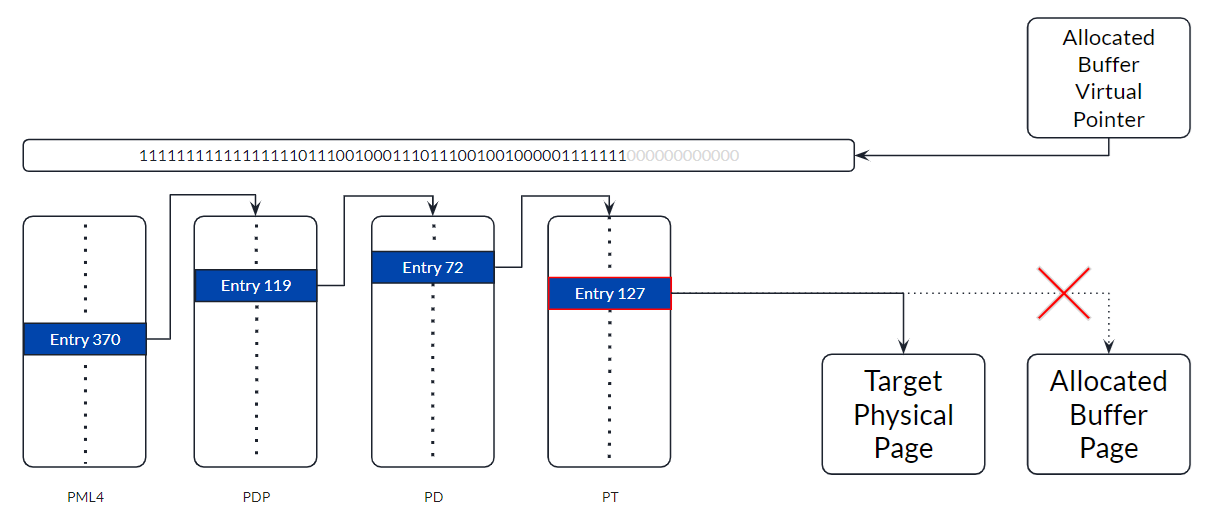

Manual Page Remapping
A method utilized by the widely used physical memory acquisition tool WinPmem [1]
consists of manipulating
the PTE of a virtual pointer to a self-owned dummy-page, to make it point to a desired target
physical address (this is sometimes referred to as "rogue page" or "rogue PTE").
This way, accessing a virtual pointer to the self-owned page will make the CPU resolve the
target physical address,
instead of the original one. This method works as follows:
- Allocate a non-paged 4KiB buffer that is page aligned.
- Find the PTE of the allocated buffer, as described in the Page Tables section above.
- Change the PFN that is pointed-to by that PTE to the target physical page.
- Pointer to the buffer will now access the target physical page instead of the buffer.

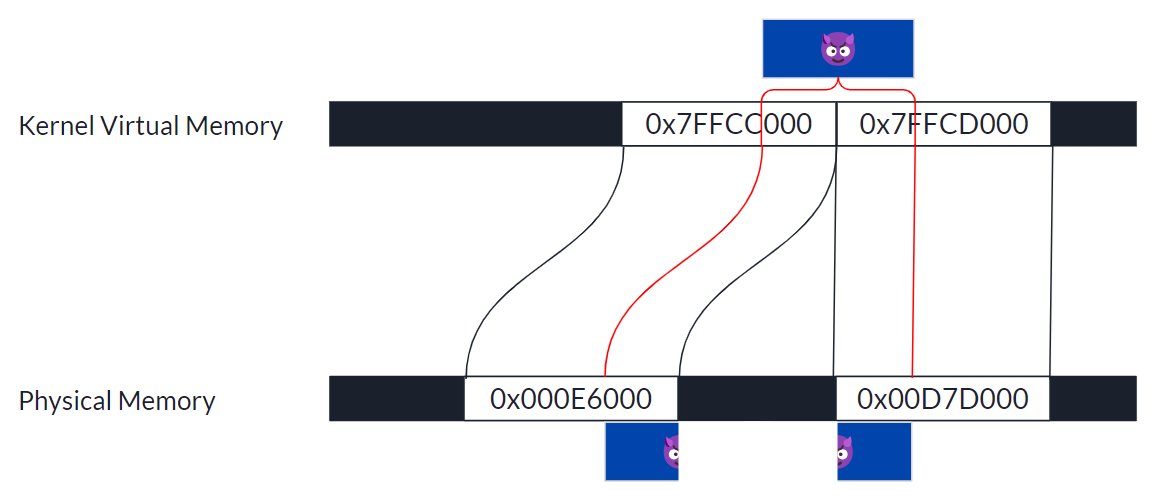

Consecutive Memory
During this section we overviewed the concept of physical memory scanning and how it can be used
to find
target objects that "float" around within the system memory. One issue with this approach is
that objects are allocated
by software using the virtual memory. This means that an object that we are looking for will
not necessarily be
consecutive in the physical memory (as depicted in the figure below).

We can resolve this issue by taking a different approach, by the means of Virtual Memory
Scanning.
Virtual Memory Scanning
The virtual memory address space is potentially huge, for example a 64-bit
address space
could potentially contain up to 264
different addresses. This poses a
challenge to
our endeavor of performing the memory scan on virtual memory. In reality, not all of the address
space
is available, and more specifically not all of it belongs to the kernel, this implies that some
assumptions could be made to minimize the range to be scanned. With that being said, since the
kernel does
potentially use wide ranges of the address space, such assumptions will still
leave us with a large portion of the virtual address space, larger than we would like in
order to be able
to reasonably scan its entirety.
The solution to this problem is "crawling" the page-tables, so that only virtual memory
that is actually
mapped to physical memory (or paged-memory for that matter) will be scanned. A question still
hangs: once
we find, during the recursive iteration on the page-table hierarchies, a page that is available
for scanning
- how can we prevent it from "moving around" (e.g. due to swapping or memory compaction) during
the scan?
- Mapping a locked virtual page to the given one, via API provided by the OS.
- Applying the page remapping trick once again.
Note: there is still a small chance of the scanned memory swapping-out and another chunk of memory swapping-in to the same physical address, between the iteration time and the time in which locking/remapping was performed. Still, these methods let us avoid of getting page-faults during the scan, or interfering the scanned system.
Method Comparison and Implications
Finding Cross-Page Structures
As we have seen, physical memory scanning does not guarantee virtual-continuity of the scanned memory, and therefore physical scanning may miss structures that reside across more than one page.
Finding Already-Freed Memory
Since virtual memory scanning only performs scanning on memory that is
mapped at the moment
of scan, once memory was freed (e.g. A process was closed and its associated
EPROCESS
structure
was freed by the kernel) it cannot be found via virtual memory scanning, even if the
structure in question
still resides in the physical memory. This is in contrast to physical memory scanning, by
which such structures
could potentially be found.
Scan Time
Physical memory scan does not, in general, depend on current memory usage, since it has to iterate a constant-sized physical memory space (this analysis ignores swap-file scanning, if supported). Virtual memory scan time, on the other hand, is directly correlated to the amount of kernel virtual memory mapped in the system at the time of scan.
Data Analysis and Heuristics
In physical memory scan, one cannot rely on the virtual address of the
scanned data itself
for the purpose of heuristics, without relying on some physical-to-virtual mapping, moreover,
one
physical address can be mapped to multiple virtual addresses, so even such physical-to-virtual
mapping
will not necesarily provide a unique virtual address for the heuristics to rely on. For example,
the
TypeIndex
field of the Windows OBJECT_HEADER
structure can be used to
determine
the object's type, represented by the OBJECT_HEADER
. In newer versions of Windows,
however, this
field is masked using the object's virtual address [2].
The table hereunder summarizes the comparison between the two
suggested memory scanning methods:
Physical Memory Scanning | Virtual Memory Scanning | |
---|---|---|
Finding Cross-Page Structures | Unsupported | Supported |
Finding Already-Freed Memory | Supported | Unsupported |
Scan Time | Not affected by memory usage | Faster when memory usage is low |
Heuristics Can Rely on Virtual Memory | Less likely | Yes |
Scanning Swapped-Out Memory | Requires extra work (analyzing the pagefile) | Requires extra work (by analyzing the pagefile or, on a live system, by triggering a page fault) |
The table hereunder shows the number of objects per type, found in a
test scan of each method:
Physical Memory Scanning | Virtual Memory Scanning | |
---|---|---|
CMHIVE |
110 | 95 |
DRIVER_OBJECT |
172 | 132 |
EPROCESS |
176 | 172 |
FILE_OBJECT |
5836 | 5343 |
KMUTANT |
738 | 711 |
LDR_DATA_TABLE_ENTRY |
273 | 174 |
OBJECT_SYMBOLIC_LINK |
49 | 285 |
RTL_ATOM_TABLE |
41 | 24 |
For some of the types, such as OBJECT_SYMBOLIC_LINK
,
results are missing in physical memory scan due to virtual-address dependant heuristics. In
other type, such
as FILE_OBJECT
, the benefits of physical memory scanning are more prominent (there
can be, of course, false-positive
results, but in the specific test-scan that is shown, manual overview of the results verified
that the false-positive percentile is
similar for FILE_OBJECT
s in the two methods).
Conclusions
In this article we have reviewed two methods for scanning system memory for different objects for the purpose of debugging or forensic analysis and discussed the differences between the two methods.
It is important to keep in mind the pros and cons of each method in order to correctly choose the one that better fits the scenario in question, and to make the correct adaptation to the heuristics being used to determine a positive search result.
